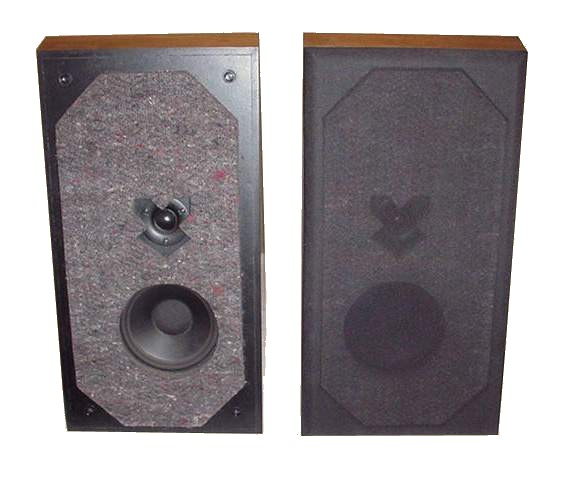

Spica TC-60 Speaker
Description: Two-way, stand-mounted, reflex-loaded (QB3 alignment) loudspeaker.
Drive-units: 1" (25mm) impregnated cloth-dome tweeter; 6.5" (165mm) polypropylene-cone woofer.
Measured crossover frequency: 3.4kHz.
Electrical crossover slopes: first-order, 6dB/octave, high-pass to tweeter; fourth-order Bessel, 24dB/octave, low-pass to woofer.
Frequency response: 48Hz–20kHz (-3dB).
Sensitivity: 87dB/W/m (2.83V).
Nominal impedance: 8 ohms (5.6 ohms minimum at 10kHz).
Power handling: 60W continuous, 120W peak.
Dimensions: 21.25" (540mm) H x 11.5" (292mm) W x 10.5" (267mm) D.
Weight: 26 lbs (11.8kg) each.
Finishes available: natural wood veneers.
Woofer: Peerless (model number needed)
Tweeter: Vifa (model number needed)
