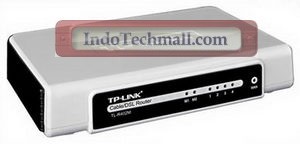

Cable/ DSL Router

The TL-R402M Multifunctional Broadband Router is specially designed for small enterprise, office and SOHO (Small Office/Home Office) to access the Internet. It features strong functions, high performance, and easy configuration router. The TL-R402M provides many management functions, including system, DHCP server, virtual server, DMZ host, firewall, and static routing table.

The TL-R402M router provides flexible access control, limiting staff or children to browse selected sites. It connects to the Internet automatically or on demand and disconnects when idle to save on network costs. Quick Setup Wizard is supported and friendly help pages are provided for every step.

Spotlight:
Cable/DSL Router for home, Build-in 4-port Switch
Share data and Internet access

Software Specification
Standards and Protocols
 IEEE 802.3, 802.3u, 802.3x,
 TCP/IP, DHCP, ICMP, NAT, PPPoE
Basic Function
 DHCP Server
 DHCP Client
 MAC Address Modify/Clone
 VPN Pass-through
Port Setting
 LAN and WAN Port Setting
Forwarding Rules
 Virtual Server
 Special Application
 Static Routing
 DMZ Host
 UPnP
Firewall Function
 Firewall Rules Setting
 MAC Address Filtering
 Domain Name Filtering
 Ignore Ping Packet From WAN Port
System Function
 Remote Management
 System Log
 TFTP Upgrade
Hardware Specification
Ports
 LAN
 4pcs 10/100M Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
 WAN
 1pc 10/100M Auto-Negotiation  RJ45 port (Auto MDI/MDIX)
Network Media
 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ω STP (maximum 100m)
 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators
LAN
 Link/Act (1, 2, 3, 4)
WAN
 Link/Act
Else
 M1, M2
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 5.9*3.9*1.1 in. (150*100*28 mm)
Power
 External Power Adapter
