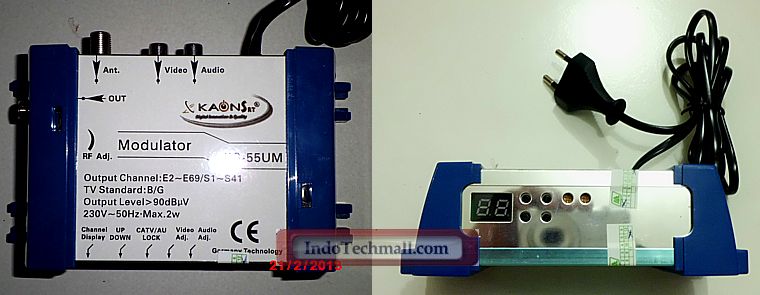

Digital RF Modulator
Made in Taiwan
Berguna untuk mengubah sinyal video menjadi sinyal RF. Output RF dihubungkan ke areal in TV/ antena in.
Specification:
Gain adjustment
Input 1 channel
Channel adjustment UHF E21(471.25 Mhz) - E69(855.25Mhz)
RF Out
Package included: power supply, combiner (2 in, 1 out)
| 1 | nC | NTSC-M (CATV) | CH58 (427.25MHZ) - CH138 (877.25MHZ) |
| 2 | nA | NTSC-M (AIR) | CH14 (471.25MHZ) - CH83 (885.25MHZ) |
| 3 | P1 | PAL-B/G | E21 (471.25MHZ) - E69 (855.25MHZ) |
| 4 | P2 | PAL-I | E21 (471.25MHZ) - E69 (855.25MHZ) |
| 5 | P3 | PAL-D/K | E21 (471.25MHZ) - E69 (863.25MHZ) |
| 6 | P4 | PAL-B | E21 (471.25MHZ) - E69 (855.25MHZ) |
