DVR Card

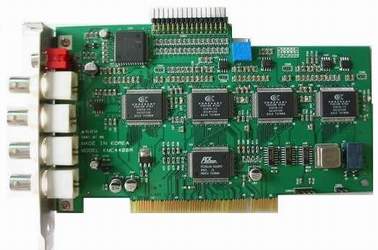

DVR Kodicom 4400R adalah sebuah card Digital Video Recorder yang berfungsi untuk merekam video dari camera ke PC. Alat ini bisa berfungsi untuk merekam 4 channel video input secara real time dan 1 channel audio input.
|
4 ch Real Time Rp 1.250.000,- 8 ch Real Time Call ! |
Main functions and features
Simultaneously record and monitor up to 16 cameras
Search real-time - search by date, time and camera
Image compression and storage
High-resolution compression (2-3 kb per picture)
Patented Engine-K CODEC algorithm
Remote transmission (PSTN, ISDN, LAN, leased, Net)
Auto transmission for emergency alarm
Split screen - 1, 4, 9, 16 Split monitoring
Real time remote surveillance by PC Monitor
Easy operation using a user friendly interface
More economical than the time-lapse V.C.R.
High resolution digital Image. No degradation
Permanent and event-controlled recording
3 levels of password protection
Low management, operation, and maintenance cost
Adjust recording speed camera by camera
|
ITEM |
KMC-4400R |
|
|
Display (Max)
|
NTSC
|
120
Frame/Sec |
|
PAL
|
100
Frame/Sec |
|
|
Recording
Speed (Max)
|
NTSC
|
120
Frame/Sec |
|
PAL
|
100
Frame/Sec |
|
|
Compression Method |
Engine-K
(Own invented algorithm) |
|
|
Compression Dimensions
|
NTSC |
160x120=Average
1Kb/Frame 320x240=Average 2.5Kb/Frame 640x480=Average 6Kb/Frame |
|
PAL |
192x144=Average
1Kb/Frame 384x288=Average 2.5Kb/Frame 768x576=Average 6Kb/Frame |
|
|
Screen
Division |
1,
4, 6, 9, 10, 13, 16 Division |
|
|
Camera
Input |
16Ch |
|
|
External
Monitor |
1Ch |
|
|
External
Sensor Input |
8Ch
(16Ch Option) |
|
|
Remote
Transmission |
PSTN
/ ISDN / LAN / Leased / Net |
|
|
Verify |
WATER-MARK |
|
