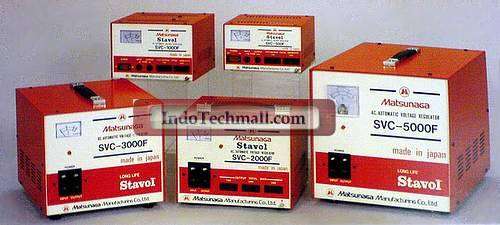

Matsunaga Stavol

(Original Made in Japan)



Matsunaga Stavol is the Best of bests in all of Automatic Voltage regulator in the World, on all points of its features such as performance, reliability, toughness, construction, shape, design and also even it's color.

Actually all "Stavol" have super performances like as just completely superior quality, very rapid correction speed, mechanical accuracy, extra high efficiency, zero waveform distortion, compact size, light weight and of course very wide range of input voltage.





Specifications

Input voltage

150V ~ 250V

Output Voltage

220V + 3%

Phase

Single phase

Frequency

50Hz / 60Hz

Response Time

Within 0.8 sec. against 10% input voltage deviation

Efficiency

Better than 90% (input voltage 180V, output voltage 220V and at rated load)

Power Factor

Better than 95% (input voltage 180V, output voltage 220V and at rated load)

Ambient Temperature

-5C ~ +40C

Ambient Humidity

Less than 90% (relative humidity)

Temperature Rise

Less than 75C (input voltage 180V, output voltage 220V and at rated load)

Cooling System

Convection-cooled (Model 3kVA ~ 10kVA Air blast)

Control System

DC servo motor

Style

Stand-alone style

Insulation Resistance

More than 3MΩ at DC 500V

Dielectric Strength

Tested at AC 1500V for 1 min.



Model

Power Output

W(mm)

D(mm)

H (mm)

Weight (kg)

SVC-500F

500VA

175

160

110

3.5

SVC-1000F

1KVA

195

180

135

5.5

SVC-1500F

1.5KVA

215

190

145

6.5

SVC-2000F

2KVA

235

230

190

10

SVC-3000F

3KVA

250

271

225

14

SVC-5000F

5KVA

290

344

285

23

SVC-10000F

10KVA

330

570

370

54
